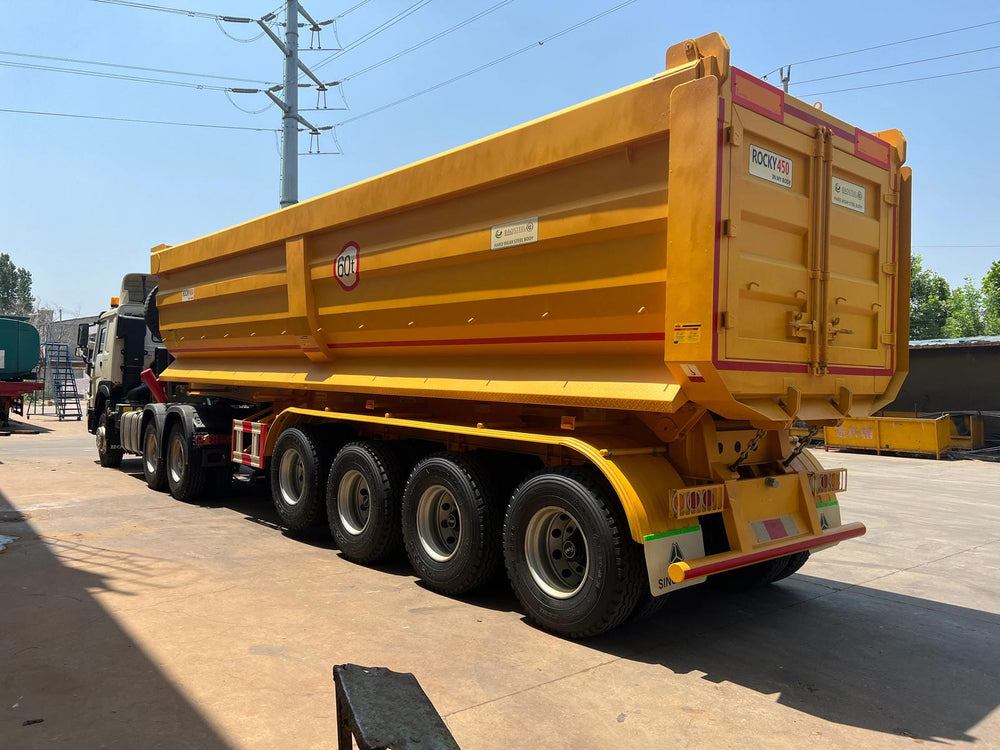

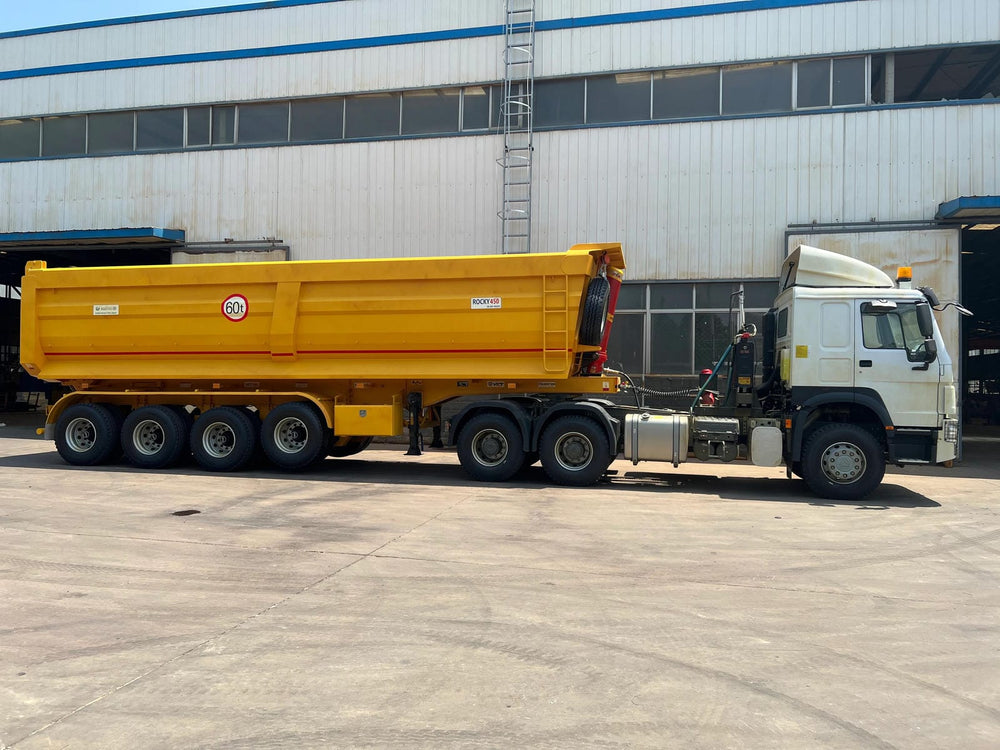

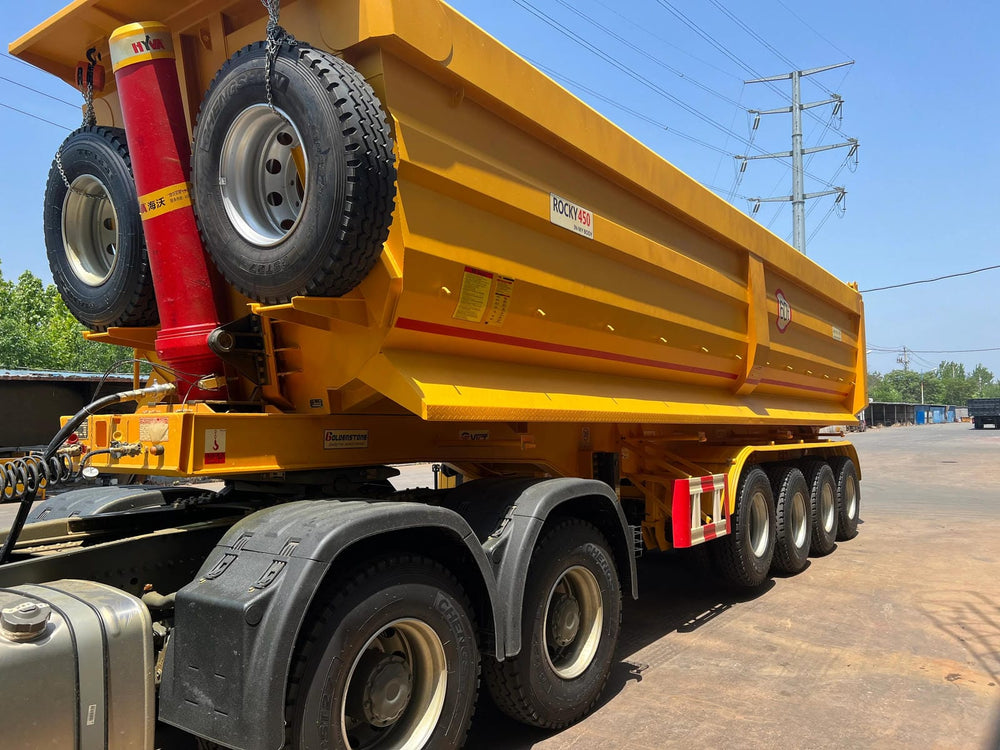

40T/60T/100T-4/6 Axle Tipper Semi-Trailer



Parameter Category Specific Configuration Details
Box Body Dimension: 10000mm×2500mm×3700mm (The final size is according to the drawing)
Inner Size (Box Size): 9300mm×2300mm×1900mm
Total Volume: 40 m³
Side Wall Thickness: 6 mm (Imported wear-resistant steel)
Bottom Plate Thickness: 8 mm (Imported wear-resistant steel)
Tare Weight About 13500kg
Lifting System Full set of HYVA Hydraulic Lifting Cylinder (imported with original packaging)
Chassis Axle: 2/3/4 pcs, 13T/16T, optional brands: BPW/FUWA/DERUN
Landing Gear: JOST E100, double speed type
King Pin: JOST 2.0/3.5 inches king pin
Suspension: Mechanical Suspension / Air Suspension / Bogie Suspension (Germany Type or America Type)
Leaf Spring: 90(W)mm×16(Thickness)mm×10 layers, optional 4/6/8 sets
Pneumatic Braking System: Dual lines air brake system with WABCO valve; equipped with ABS
Rim: 8.5-22.5, 16 pcs
Tire: Optional specifications: 12R22.5, 12.00R20, 315/80R22.5, 12 pcs
Painting - Process: Sandblasted for anti-rust treatment on chassis surface; coated with 1 layer of anti-corrosive primer and 2 layers of top coats
- Color: Optional, to be determined by customer
Accessories One standard tool box, one spare tire carrier


{"id":46762066575618,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"40T\/60T\/100T-4\/6 Axle Tipper Semi-Trailer","public_title":null,"options":["Default Title"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}

Product Features

  1. Powerful Performance and Wide Adaptability: Equipped with independently developed engines and MAN technology-customized models, such as the high thermal efficiency WP13NG and WP12T. These engines feature rapid power response, capable of handling complex working conditions like plateaus and mountainous areas. Some engines boast a B10 life of 1.8 million kilometers, and after localized improvements, they meet the needs of multiple scenarios including resource transportation and trunk-line logistics.

2.Outstanding Energy-saving and Consumption-reducing Advantages: Achieves high-efficiency energy conservation through multiple technologies. Its bionic design for low wind resistance reduces the drag coefficient to as low as 0.286. Combined with technologies like S-IEC gas intelligent control and stepless S power chain, gas-powered vehicles save 1-4 kg of gas per 100 kilometers, while fuel-powered vehicles save 1-2 liters of fuel per 100 kilometers. Some models even set a Guinness World Record for a single trip of 4,871 kilometers.

3.Reliable, Durable and Strong Load-bearing Capacity: Adopts MAN technology lightweight frames, axles, and 1,350 MPa high-strength steel frames, achieving weight reduction without quality compromise. The overall vehicle weight is as low as 7,900 kg while the load-carrying capacity is enhanced. After multiple rounds of test verification, the long-term operation failure rate is lower than the industry average, ensuring high attendance rates.

4.Upgraded Intelligence and Comfort: The cab has undergone national trend-oriented and humanized upgrades, equipped with 10-12.3-inch large screens, column-mounted shifters, and extra-large berths, reducing the front blind area by 1.5 meters. Some models are equipped with intelligent auxiliary functions such as 360-degree surround view and blind spot warning, and also feature facilities like car refrigerators, enhancing the driving and riding experience.
