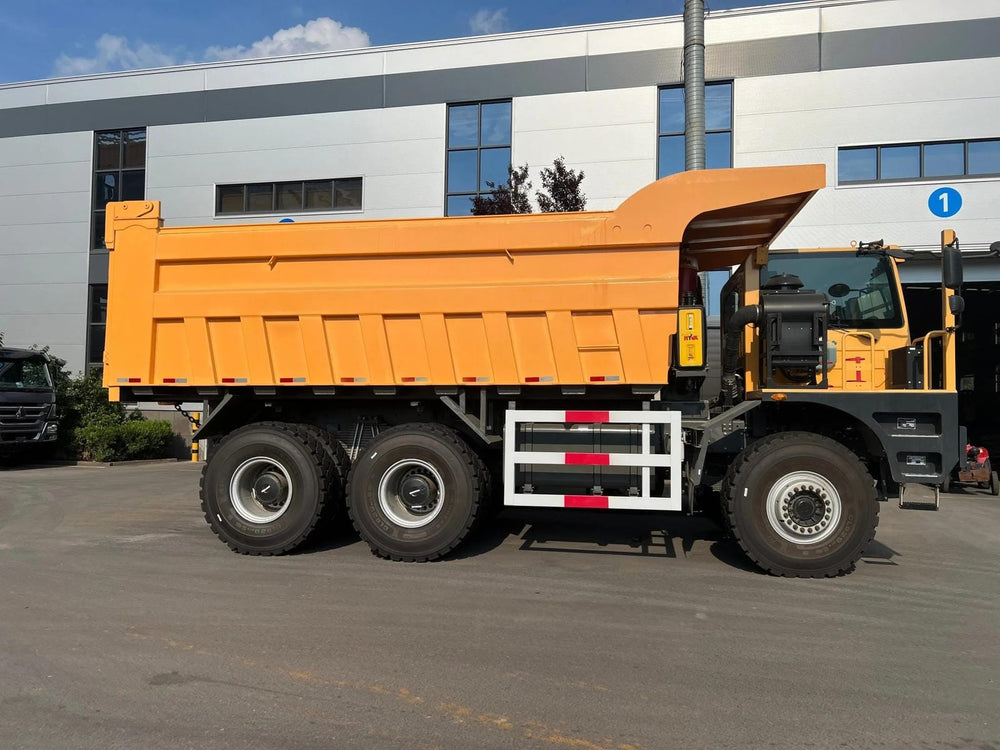

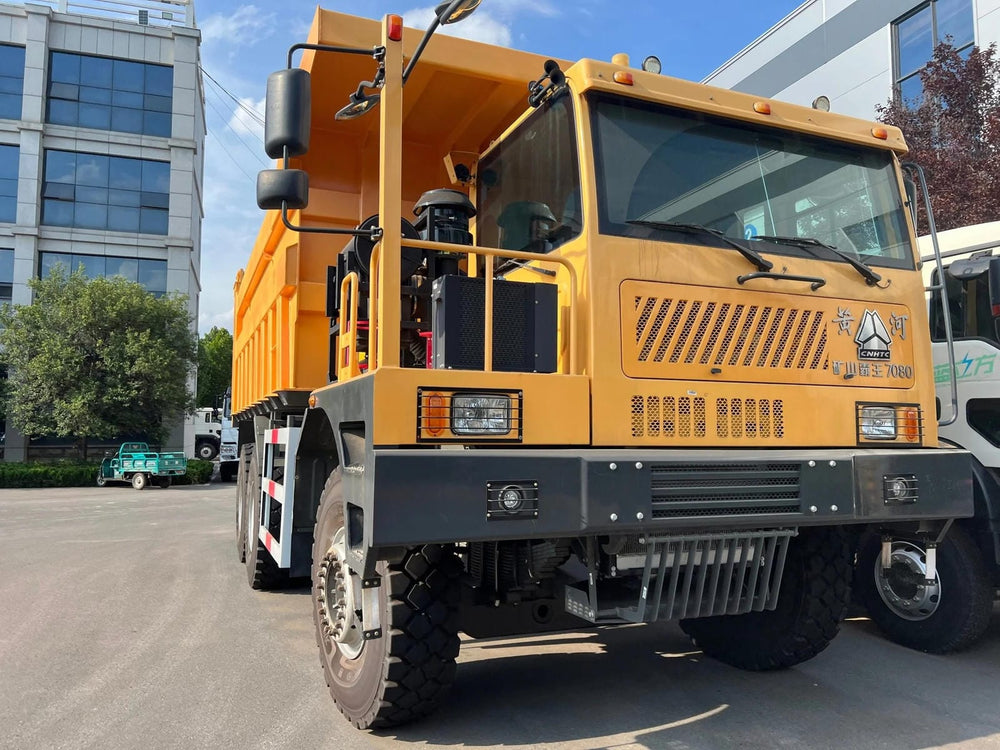

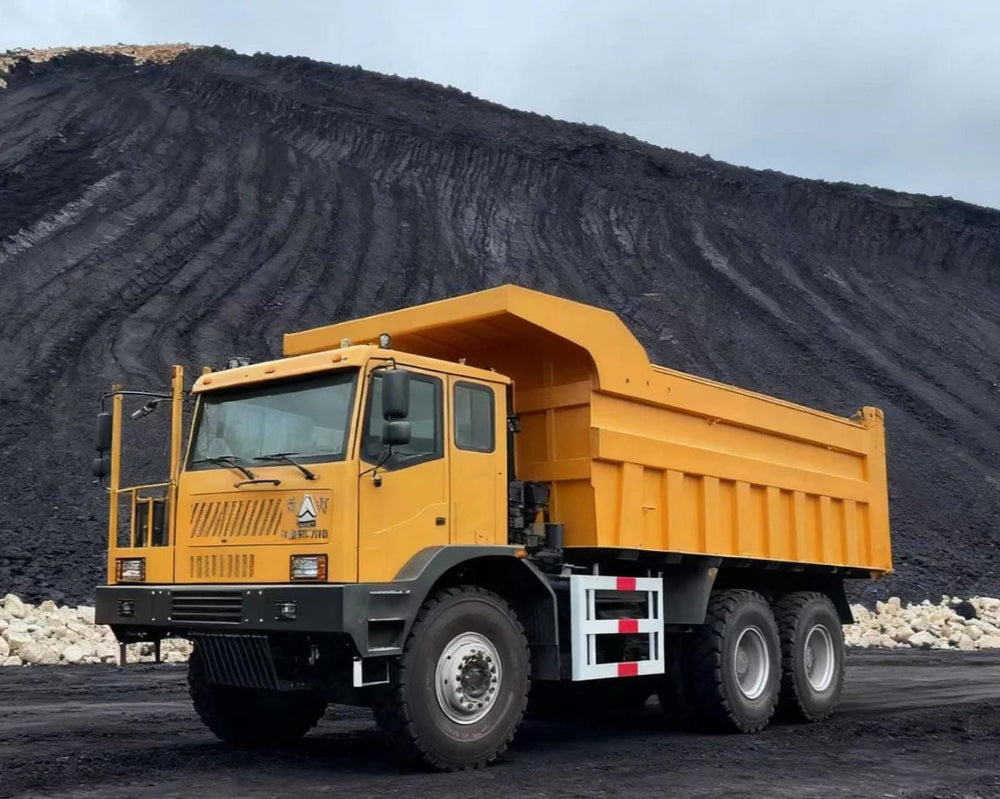

70 Mining Truck

  • Drive Type: 6X4
  • Engine: WD615.47
  • Power: 371hp
  • Loading weight(kg): 7000



Item Specification
Engine WD615.47
Transmission HW21712
Drive Axle / Rear Axle AC26 mining drive axle, dual reduction, wheel-end reduction design
Final Drive Ratio ≈ 10.47
Wheels / Tires Standard 14.00-25-36PR tires; rim size 10.0/2-25 assembly
Frame / Chassis Reinforced wide-body frame; trapezoidal equal-width frame design; HF forged/cast I-beam front axle
Fuel System / Tank 500 L D-type fuel tank (optional 400 L)
Cooling / Braking System 200 L cooling tank with water-spraying system; 500×210 or 500×235 wide brake drums; heavy-duty drum brakes
Cabin High-strength skeleton cab with side panels; hydraulic front tilting (≈ 50°); well-sealed with wide visibility; equipped with night lighting system
Dimensions & Cargo Bed Cargo bed approx. 5.8 m × 3.1 m × 1.7 m (L × W × H)
Floor & Material 14 mm bottom plate, 12 mm side plates; high-strength steel; extra-thick leaf springs for mining conditions

{"id":46741880111362,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"70 Mining Truck","public_title":null,"options":["Default Title"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}

Product Features

  1. Powerful Performance and Wide Adaptability: Equipped with independently developed engines and MAN technology-customized models, such as the high thermal efficiency WP13NG and WP12T. These engines feature rapid power response, capable of handling complex working conditions like plateaus and mountainous areas. Some engines boast a B10 life of 1.8 million kilometers, and after localized improvements, they meet the needs of multiple scenarios including resource transportation and trunk-line logistics.

2.Outstanding Energy-saving and Consumption-reducing Advantages: Achieves high-efficiency energy conservation through multiple technologies. Its bionic design for low wind resistance reduces the drag coefficient to as low as 0.286. Combined with technologies like S-IEC gas intelligent control and stepless S power chain, gas-powered vehicles save 1-4 kg of gas per 100 kilometers, while fuel-powered vehicles save 1-2 liters of fuel per 100 kilometers. Some models even set a Guinness World Record for a single trip of 4,871 kilometers.

3.Reliable, Durable and Strong Load-bearing Capacity: Adopts MAN technology lightweight frames, axles, and 1,350 MPa high-strength steel frames, achieving weight reduction without quality compromise. The overall vehicle weight is as low as 7,900 kg while the load-carrying capacity is enhanced. After multiple rounds of test verification, the long-term operation failure rate is lower than the industry average, ensuring high attendance rates.

4.Upgraded Intelligence and Comfort: The cab has undergone national trend-oriented and humanized upgrades, equipped with 10-12.3-inch large screens, column-mounted shifters, and extra-large berths, reducing the front blind area by 1.5 meters. Some models are equipped with intelligent auxiliary functions such as 360-degree surround view and blind spot warning, and also feature facilities like car refrigerators, enhancing the driving and riding experience.
